LED Dowlighter | Troffer

  • Home
  • LED Dowlighter | Troffer

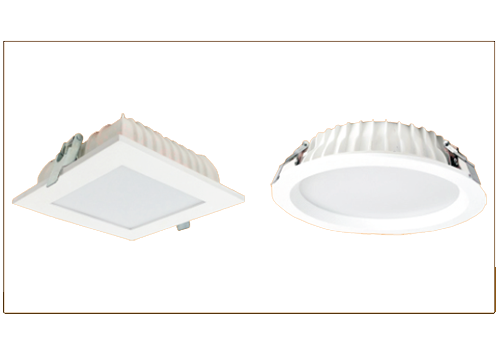

LED Downlighter

Features

  • Wide operating voltage range.
  • Secondary optics with opal diffuser.
  • High efficiency constant current driver.
  • Extruded Aluminium or PDC housing with PC diffuser.
  • Glare free light.
  • High PF & low THD
  • Easy to install
  • Energy saving of Rs. 100/- per 1000 Hrs. operation on other LED tubes.

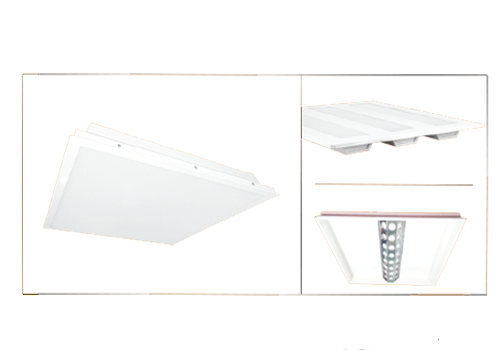

LED Troffer

Features

  • Smooth opal diffuser offering an evenly distributed appearance.
  • Suitable for standard ceiling grid or recess mount.
  • Isolated constant current driver.
  • Wide operating voltage range.
  • Secondary optics with opal diffuser.
  • High efficiency isolated constant current driver.
  • Glare free light
  • High PF & Low THD
Product Range UOM
10W 20W 25W 30W 40W
2X2 28W 2X2 34W 2X2 42W
Operating Voltage Range Volts 150 - 280 Vac
Operating Temp. Range °C 10 to 45
Relative Humidity % 0 to 90
CRI >70
CCT K 4000 to 5600K
System Power Watt
12 22 28 33 43
30 36 45
System Power Factor >0.9
ATHD % <20
Uniformity >_ 0.5
Housing Material Aluminium die cast Steel sheet woth powder coating
Secondary Optics Opal PC Diffuser Opal PPM Diffuser
Product dimension mm Standard 595 X 595 X 55
Cut Out dimension mm Standard 585 X 585
