Features

High Efficient Thermal design for better dissipation and longer product life.
Secondary optical lens for desired glare free light distribution.
Isolated IP66 high efficiency driver.
Extruded Aluminium housing.
Wide beam angle.
High Luminaire efficiency.
Wide operating voltage range.
High PF & Low THD
Maintenance Free design.

Applications

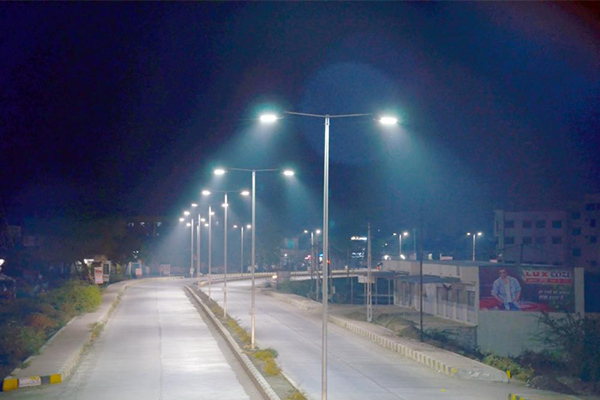

All types of roads.

Product Range	UOM	12W to 140W
Operating Voltage Range	Volts	150-280 Vac
Operating Temp. Range	°C	10 to 45
Relative Humidity	%	0 to 90
CRI		>70
CCt	K	3000K to 6500K
System Power Factor		>0.95
ATHD	%	<10
Uniformity	>_	0.4
System Efficacy	>_	110 lm/w
Housing Material		Alu. Extruded
Secondary Optics		PMMA Lens
Internal Surge	up to	4 KV
External Surge	up to	10 KV
